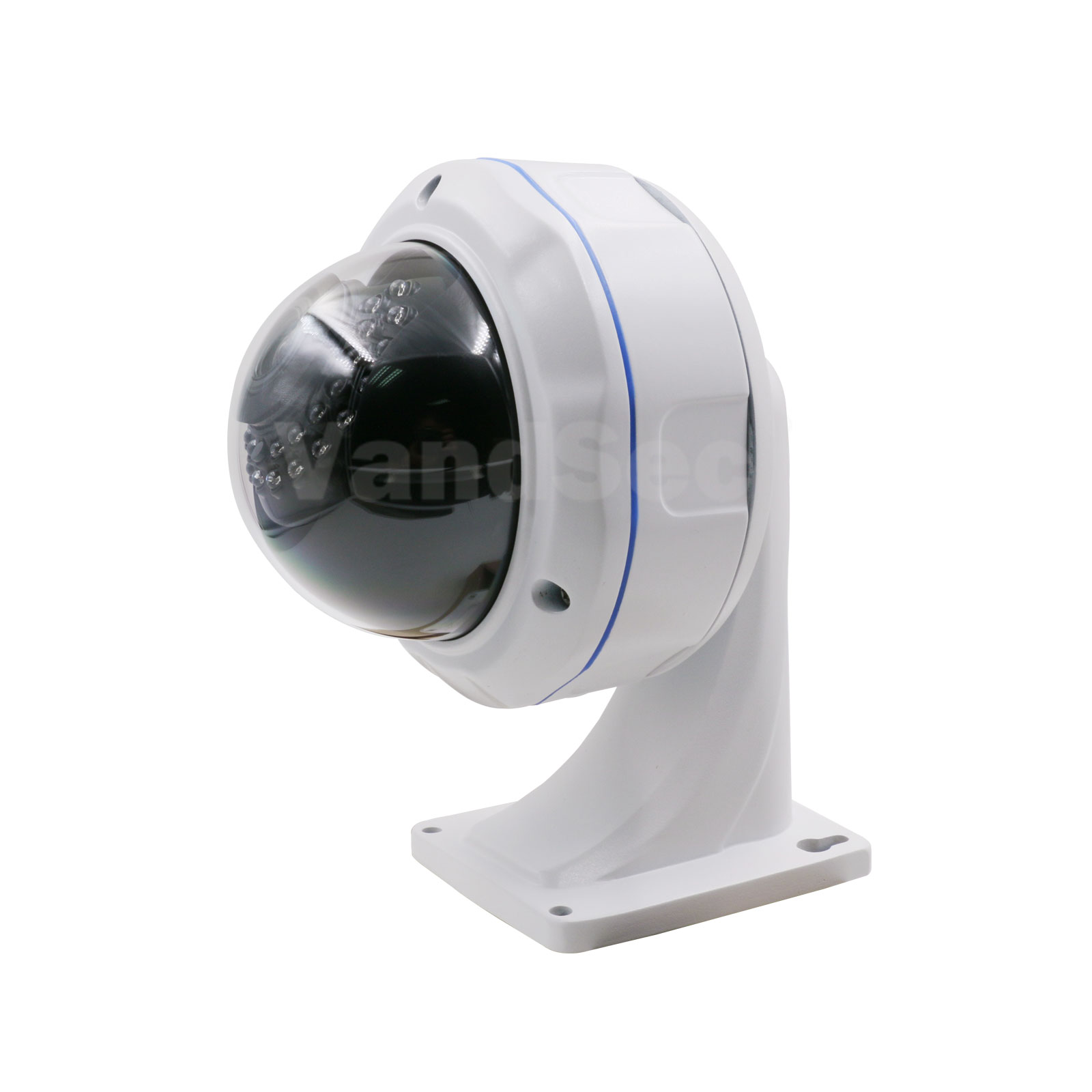

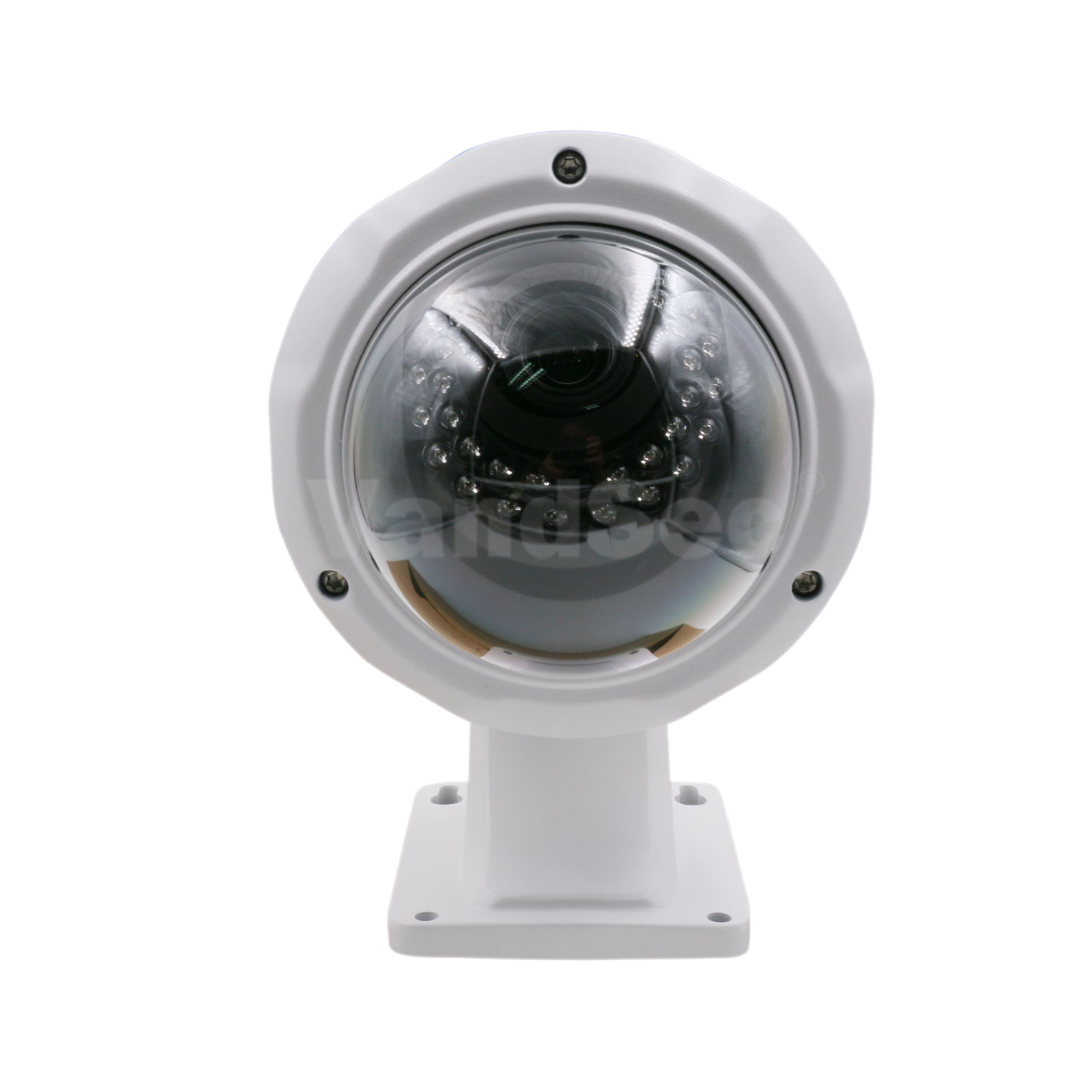

Vandalproof IR Dome Camera
SONY Color CCD

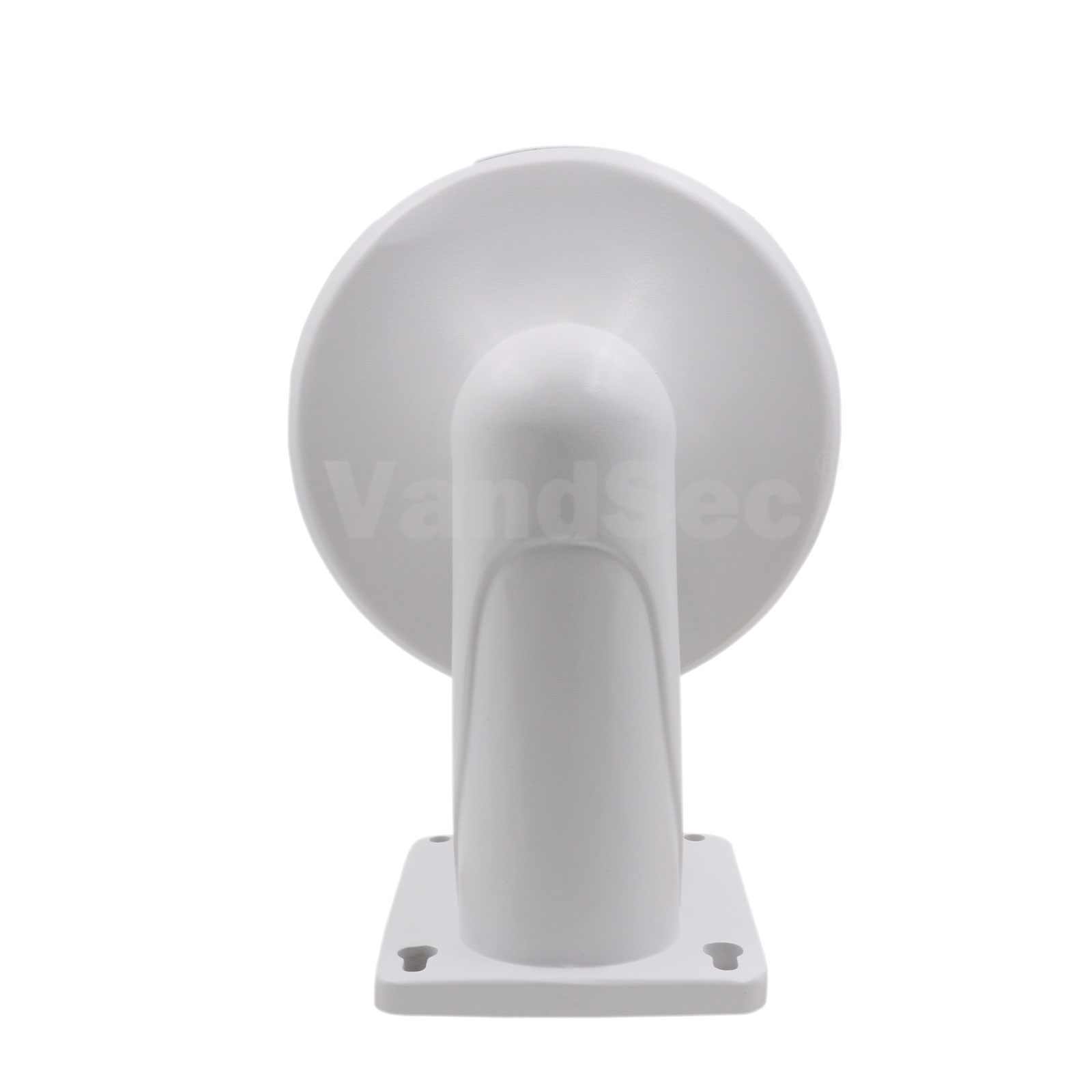

3-Axis Bracket Built-in
IR LED: ￠5X30pcs, IR Range: 25M
Lens: 2.8-12mm Manual Zoom Lens (2 Megapixel)
Size: 135mm x 190mm
Weight: 1.0kg
| Model ID | VD-IFVSHD |
| Description | Vandalproof IP66 IR Dome Camera ;IR LED: ￠5X30pcs, IR Range: 25M |
| TV System | NTSC / PAL |
| Video Out | BNC |
| Chipset Solution | 1/3" SONY IMX322 2.4 Megapixel CMOS Sensor |
| Resolution | 720P/1080P |
| Effective Pixels | 720P:1280(H)×720(V)/1080P:1920(H)×1080(V) |
| Realtime | 1080P: 1920 * 1080, at 30fps 720P: 1280 * 720, at 60fps |
| Minimum Illumination | 0.001Lux |
| Lens | 2.8-12mm Manual Zoom Lens(2 Megapixel) |
| Sync,System | Internal Synchronization |
| Scanning System | 2:1 Interface |
| Shutter Speed | 1/60~1/100,000sec (N), 1/50~1/100,000sec (P) |
| S/N Ratio | ≥ 50dB |
| Day&Night ICR | YES |
| Private Area Cover | YES |
| 3D-DNR | YES |
| Motion Detection | YES |
| OSD | YES |
| WDR | YES |
| BLC | YES |
| Defog | YES |
| Power Source | DC12V ±10% |
| Operating Enviroment | -20℃~60℃ / 10% ~ 95%RH |
| Working Humidity | ≤90% |
| Size(mm) | 135mm x 190mm |
| Weight(kg) | 1.0 kg |
