特征:

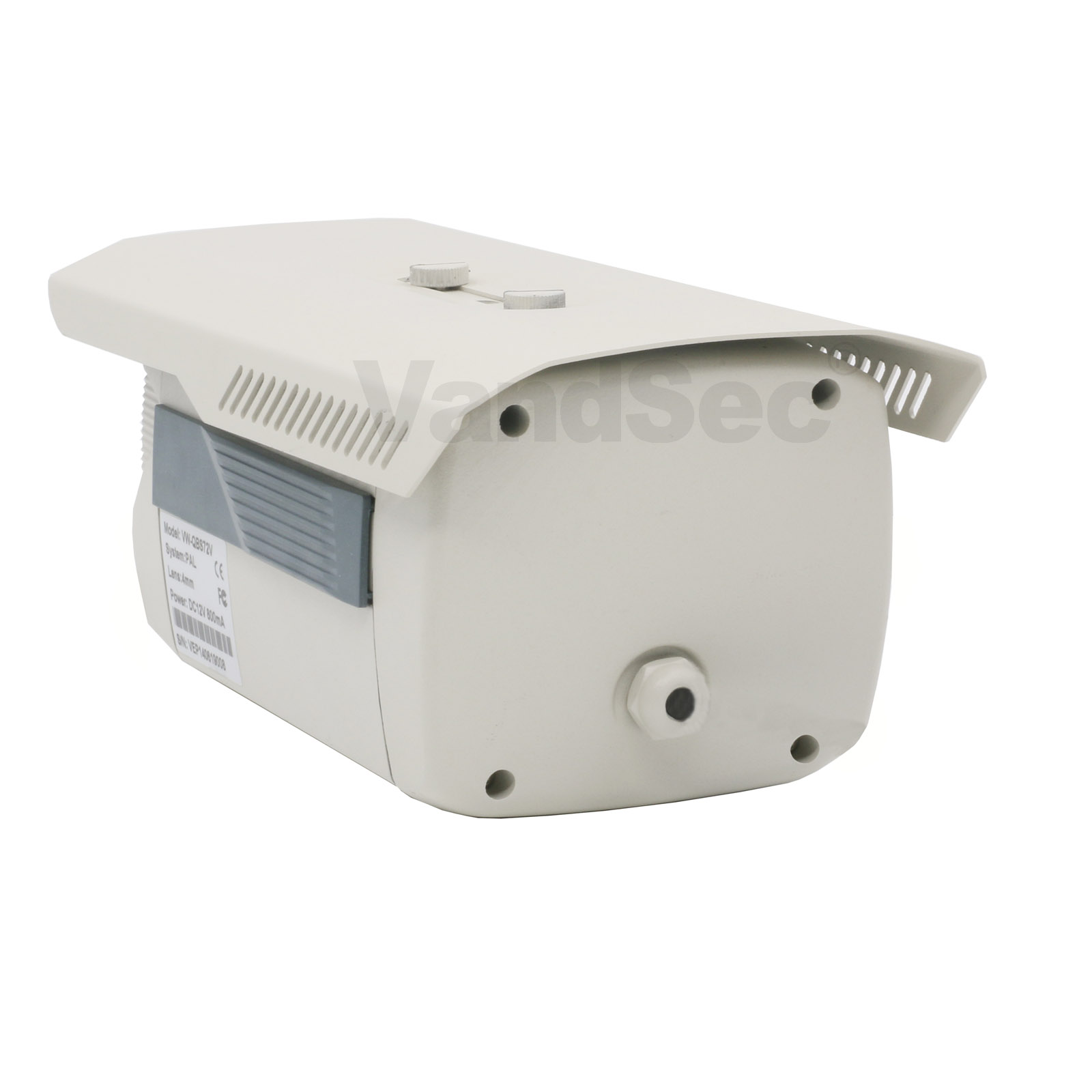

Waterproof IR Bullet Camera

SONY Color CCD

Waterproof level: IP66

IR LED: 4 pcs IR-III Leds, IR Range: 80M

Lens: CS Lens 12mm

Size: 275mm x 113mm x 139mm

Weight: 2.3kg

PDF Download

规格 特征 尺寸 其它
Model ID VW-RBSHD
Description Waterproof IR Bullet Camera ;Waterproof level: IP66;IR LED: 4 pcs IR-III Leds, IR Range: 80M
TV System NTSC / PAL
Video Out BNC
Chipset Solution 1/3" SONY IMX322 2.4 Megapixel CMOS Sensor
Resolution 720P/1080P
Effective Pixels 720P:1280(H)×720(V)/1080P:1920(H)×1080(V)
Realtime 1080P: 1920 * 1080, at 30fps                720P: 1280 * 720, at 60fps
Minimum Illumination 0.001Lux
Lens CS Lens 12mm
Sync,System Internal Synchronization
Scanning System 2:1 Interface
Shutter Speed 1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio ≥ 50dB
Day&Night ICR YES
Private Area Cover YES
3D-DNR YES
Motion Detection YES
OSD YES
WDR YES
BLC YES
Defog YES
Power Source DC12V ±10%
Operating Enviroment -20℃~60℃ / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 275mm x 113mm x 139mm
Weight(kg) 2.3 kg
